5-20dB DC 2.5Ghz Connector NK-NK Variable Attenuators 36.5×65×17.8mm

Brand Name : YLT

Model Number : Attenuators

Place of Origin : China

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, Paypal

Delivery Time : 5-8 work days

MOQ : 100PCS

Supply Ability : 13Million PCS for RF Resistor, 7Million PCS for RF Attenuator

Packaging Details : Inside Box + Outside Carton Plus Pallet or Wooden Case if Necessary

Power Rating : 2W

Frequency(GHz) : DC-2.5Ghz

Impedance : 50Ω

Attenuation Range : 5-20dB

ConnectorNK-NK : NK-NK

Max VSWR : 2.5

Attenuation Accuracy : ±0.6dB

Contact Now

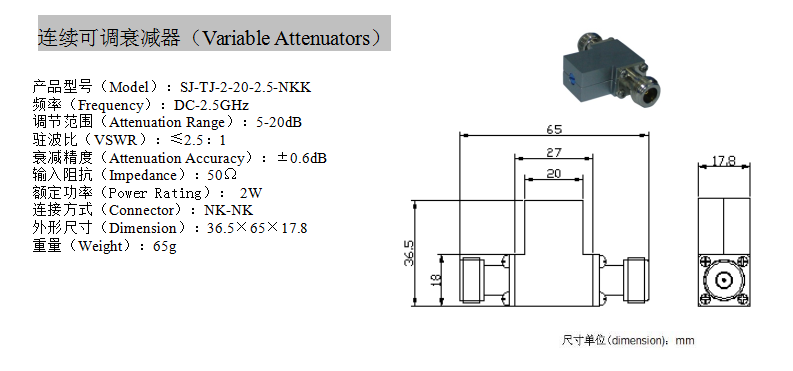

Variable Attenuators 2w 50Ω DC-2.5Ghz Connector NK-NK 36.5×65×17.8mm

Variable/step attenuator can be used to adjust the power signal level continuously or by step within certain frequency range,they can also be used to adjust the test system’s power as inset attenuator .

Power Rating:	2W	Frequency(GHz):	DC-2.5Ghz
Impedance:	50Ω	Attenuation Range:	5-20dB
ConnectorNK-NK:	NK-NK	Max VSWR:	2.5

5-20dB DC 2.5Ghz Connector NK-NK Variable Attenuators 36.5×65×17.8mm
