20 Watt DC 1.8-2.2GHz Electrode Resistance BeO AlN Al2O3 Substrate 2*2.2mm

Brand Name : YLT

Model Number : chip

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram, Paypal

Supply Ability : 13Million PCS for RF Resistor, 7Million PCS for RF Attenuator

Delivery Time : 5-8 work days

Packaging Details : Inside Box + Outside Carton Plus Pallet or Wooden Case if Necessary

Standard Resistance : 50Ω

Substrate Material : BeO,Al2O3,etc.

Resistance Tolerance : ±5%（default）;±2%;±1%

Power Rating : 20Watt

Frequency : DC 1.8-2.2 GHz

VSWR : ≤1.20

Contact Now

Electorde Resisitance 50Ω 20w DC- 1.8 - 2.2GHz BeO AlN Al2O3 2 * 2.2

Description Of Chip Terminations

high power terminations available in very small packages. They can be used in applications from DC to 26.5 GHz and can handle up to 300 Watts of power. They are matched to 50 Ohms and have a VSWR of 1.3:1. The terminations are made using a thin film gold substrate. They are ideal for military and space applications because of teir high power handling capacity, broad frequency range and small size.

Flange Termination 20watt 50ohm RF Termination Microwave Resistor High Power Dummy Load

Used and refurbished 100% DC Resistance Check Tested

MILITARY/INSTRUMENTATION RESISTIVE COMPONENTS

Features:

• DC 1.8-2.2 GHz

• 20 Watts

• BeO Ceramic

• Non-Nichrome Resistive

Element

• Low VSWR

• 100% Tested

(Chip Terminations)

Power Rating	Frequency	VSWR	Dimensions(mm)						Model
(W)	(GHz)	(Max)	W	L	H	A	B	C
2	DC-12	1.2	1.1	0.7	0.25	N/A	N/A	N/A	RFR50-2CT49701A
20	DC-18	1.35	1.27	2.54	0.38	0.8	0.6	N/A	RFR50-20CT43711A
8	DC-3	1.25	1.5	3	0.38	N/A	N/A	N/A	RFR50N-8CT15802A

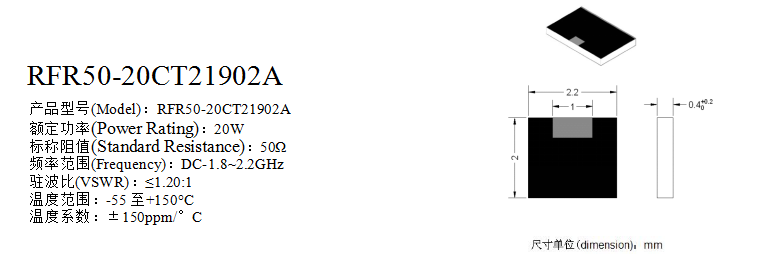

20	DC1.8-2.2	1.20	2.2	2	0.4	N/A	N/A	N/A	RFR50-20CT21902A
20	DC-12	1.40	3	2.5	0.6	N/A	N/A	N/A	RFR50-20CT0215A
20	DC-3	1.40	4	4	1	0.8	N/A	N/A	RFR50N-20CT0706A
20	DC-18	1.35	5	2.5	0.6	0.9	0.5	N/A	RFR50-20CT0406A

80	DC-6	1.25	5	5	1	3	0.8	N/A	RFR50N-80CT5901A
40	DC-3	1.20	6	4.7	1	1.4	1	N/A	RFR50-40CT0906A
100	DC-4	1.20	6.35	6.35	1	1.4	1	N/A	RFR50-100CT3341A
150	DC-4	1.20	6.35	9.5	1.5	1.6	1	N/A	RFR50N-150CT4701A
50	DC-7.2	1.20	7	3.7	1	1.2	1	N/A	RFR50-50CT0502A
100	DC-3	1.20	8.9	5.7	1	1.5	1.1	N/A	RFR50N-100CT4503A
250	DC-2.7	1.25	9.5	5.7	1	2.4	N/A	N/A	RFR50N-250CT9404A
150	DC-2.5	1.20	9.5	6.35	1	1.4	1	N/A	RFR50N-150CT2323A
250	DC-3	1.20	9.5	9.5	1	3	1.1	N/A	RFR50N-250CT2525A
